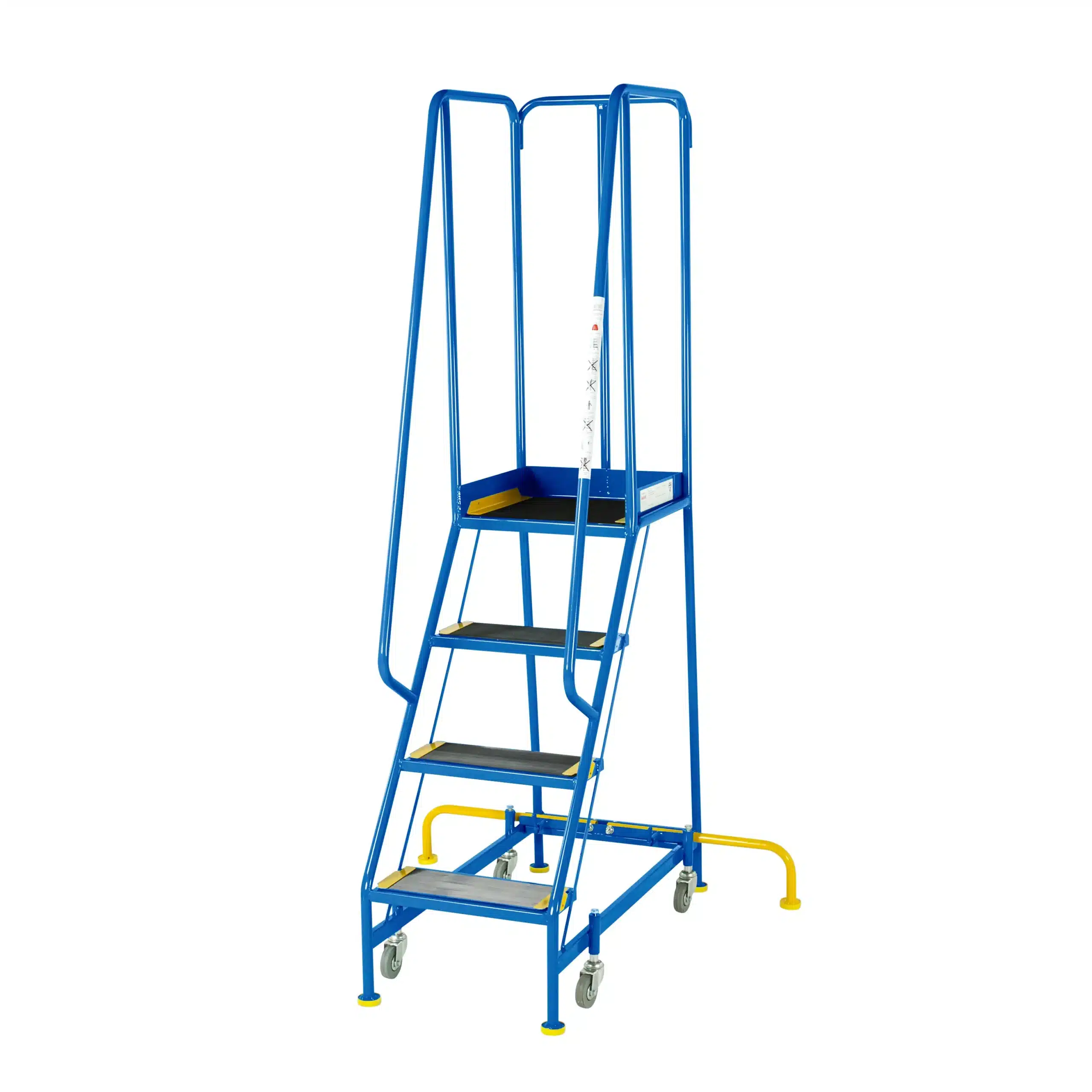

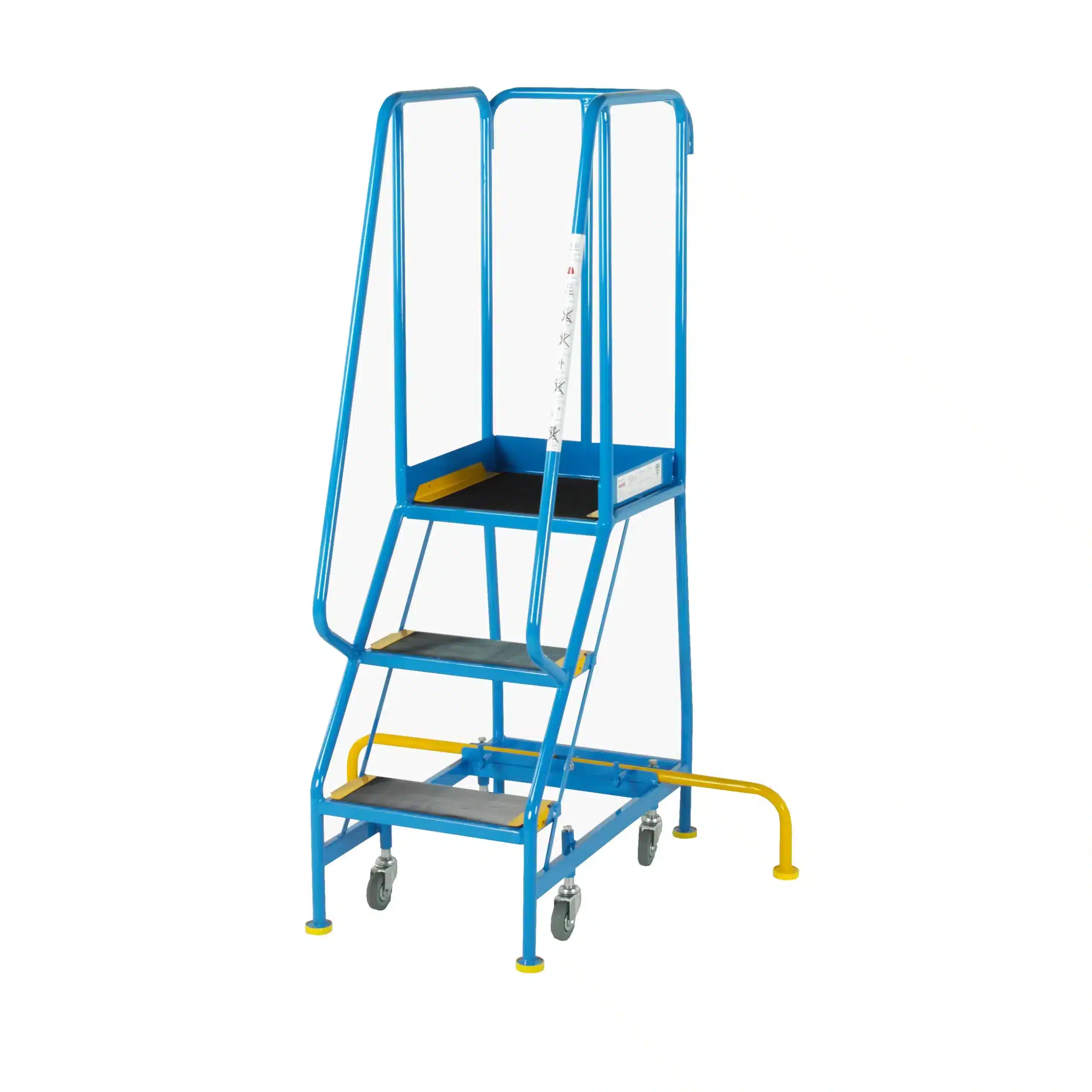

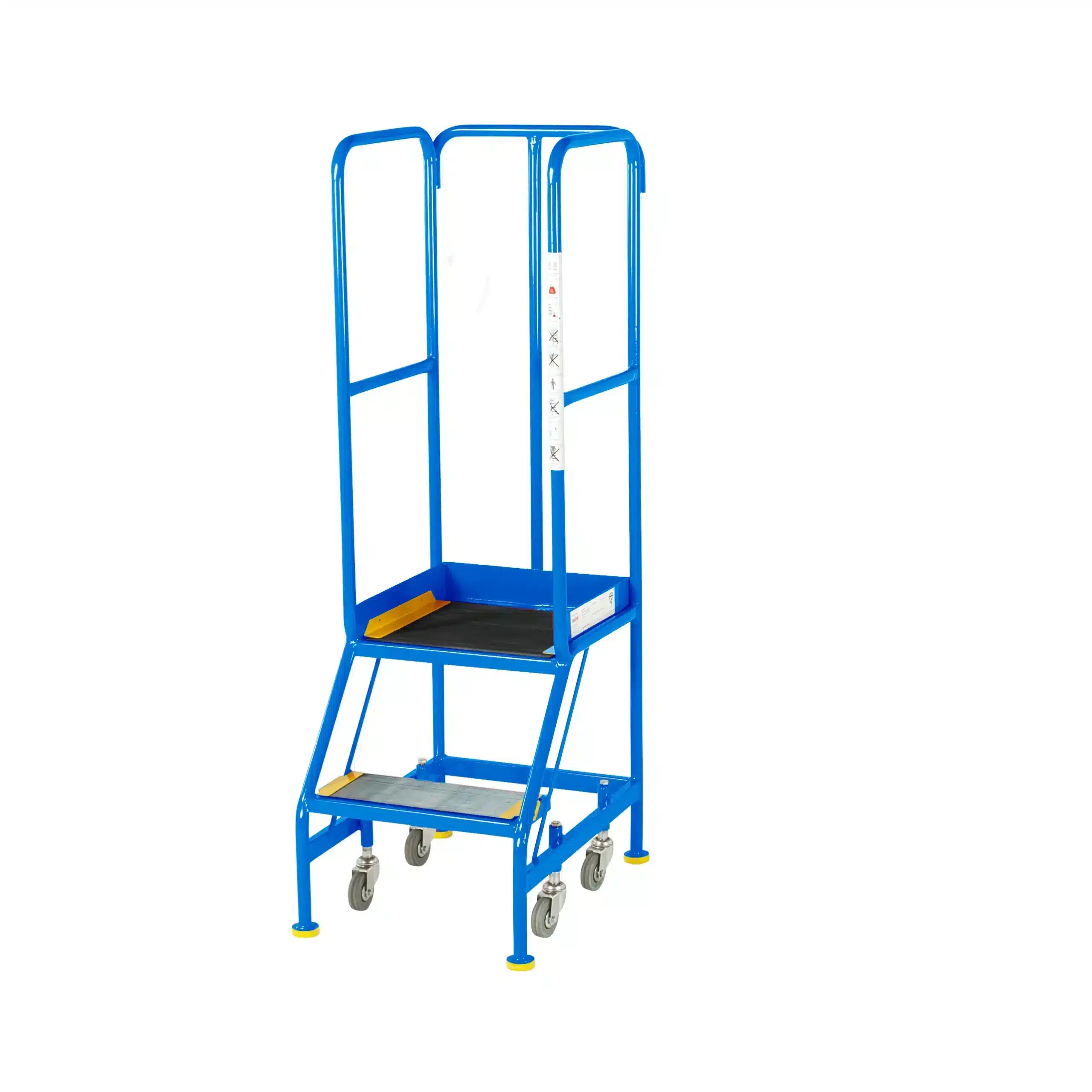

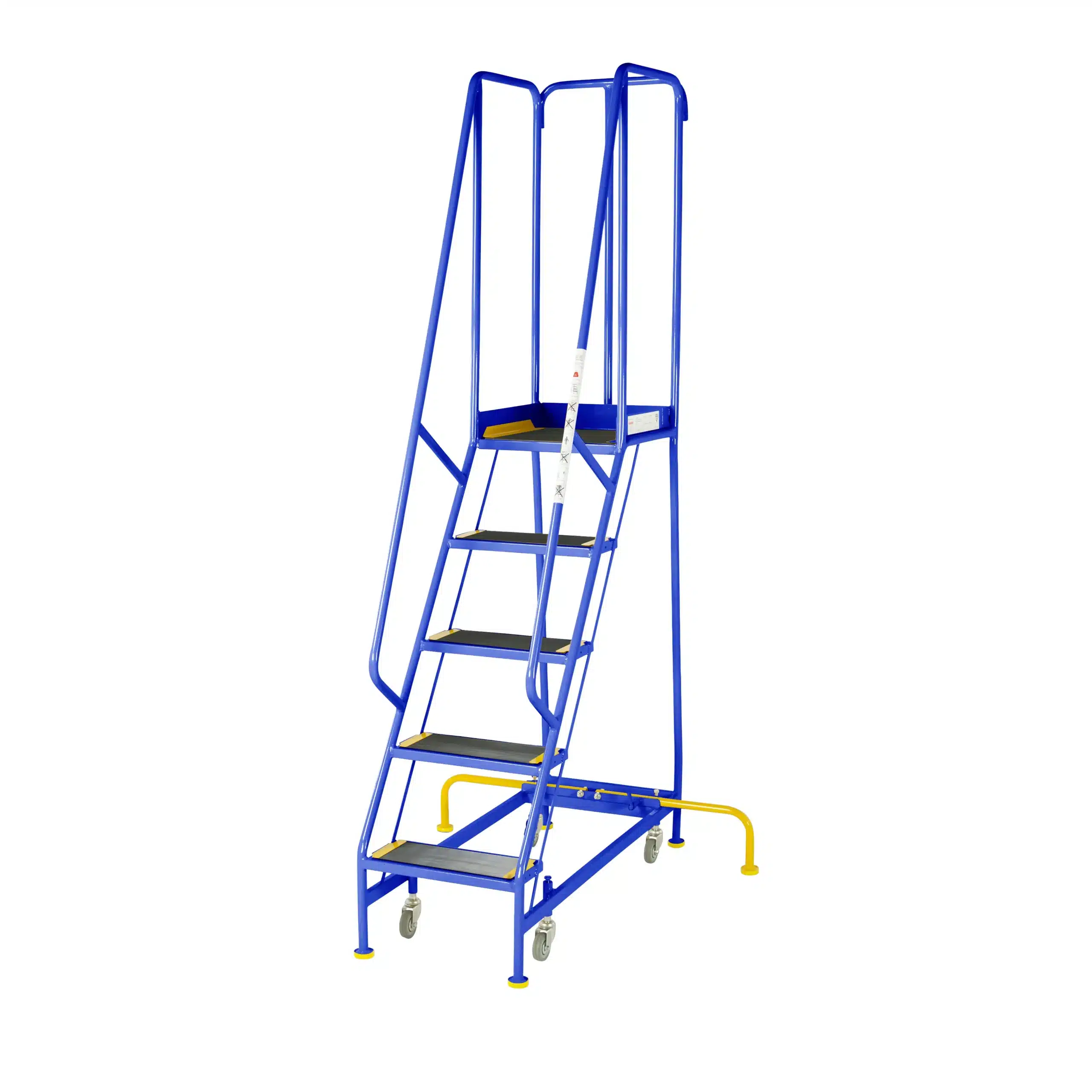

Redhill British Standard Narrow Aisle Mobile Steps

Brands: Redhill

In stock

Premium Build: Robust, all-welded construction manufactured right here in Britain.
Certified Safety: BSI Kitemarked (KM-608967) and fully compliant with BS EN 131-7 mobile ladder standards.
Intelligent Mobility: Spring-loaded castors automatically retract, lowering the feet to the ground under the operator’s weight.
Customisable Treads: Formed sheet steel treads available with either ribbed rubber or an anti-slip surface.
Warehouse Ladders Guarantee: Backed by our 5-star customer service and delivered free of charge.

Estimated Lead Time: 15 – 20 Working Days

From £469.18 Ex. VAT

Treads

Tread Type

Colour

Clear

Warehouse Ladders Advantage

✓
First Order 10% Off – Use Code
HELLO10
✓
Market-Leading Value
✓
Verified Quality
✓
Direct UK Origin
✓
Bespoke Capability
✓
Free Delivery

SKU: NarrowAisleBS Category: Warehouse Steps Brands: Redhill

Description

When navigating confined warehouse spaces, maintaining optimum safety without sacrificing efficiency is paramount. The Redhill British Standard Narrow Aisle Spring Loaded Steps are robust, hardworking narrow aisle units specifically engineered for high-density storage environments. At Warehouse Ladders, we understand your daily business needs, which is why we proudly offer these industry-leading steps, complete with our signature free delivery and backed by our numerous 5-star customer reviews.

Uncompromising British Standards & Safety

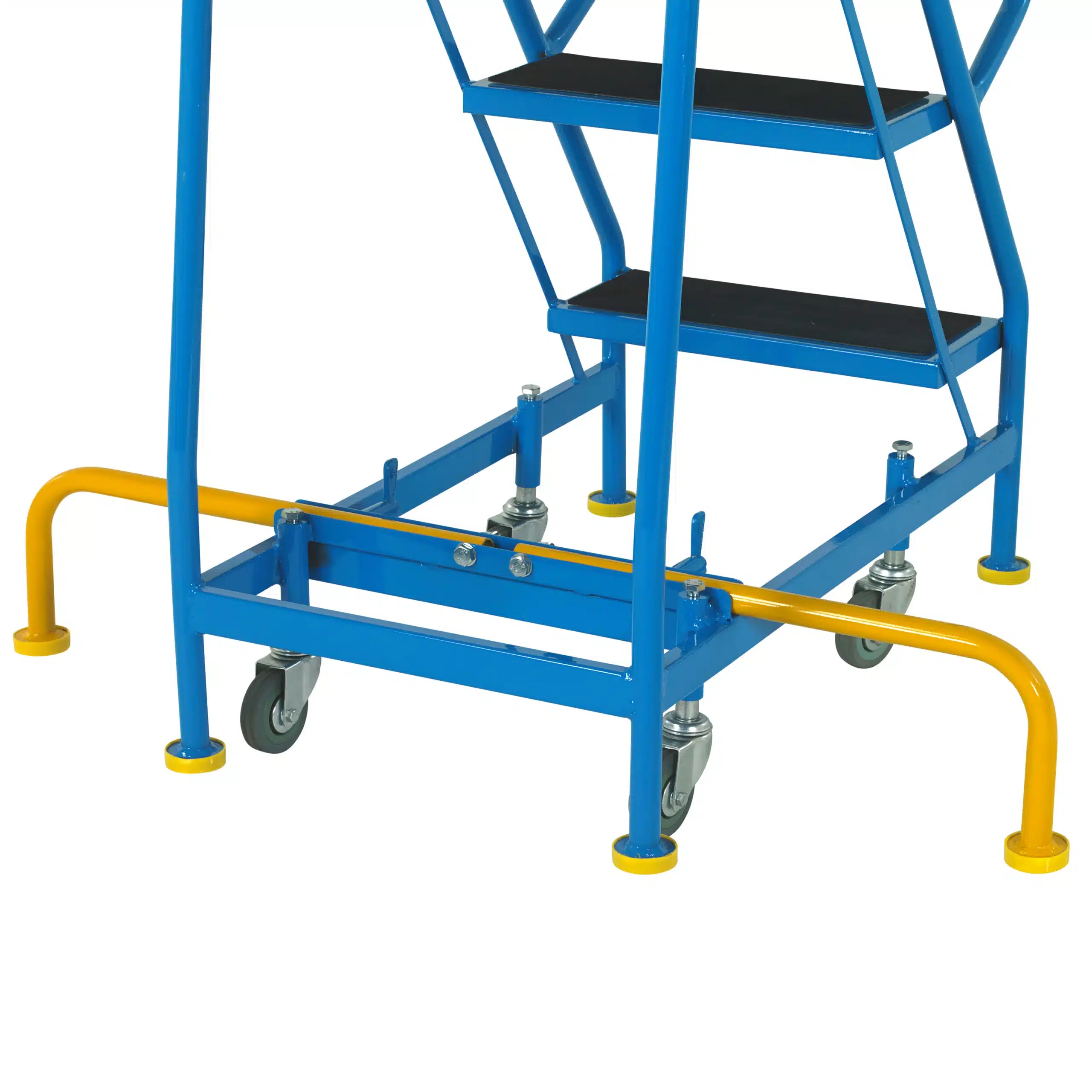

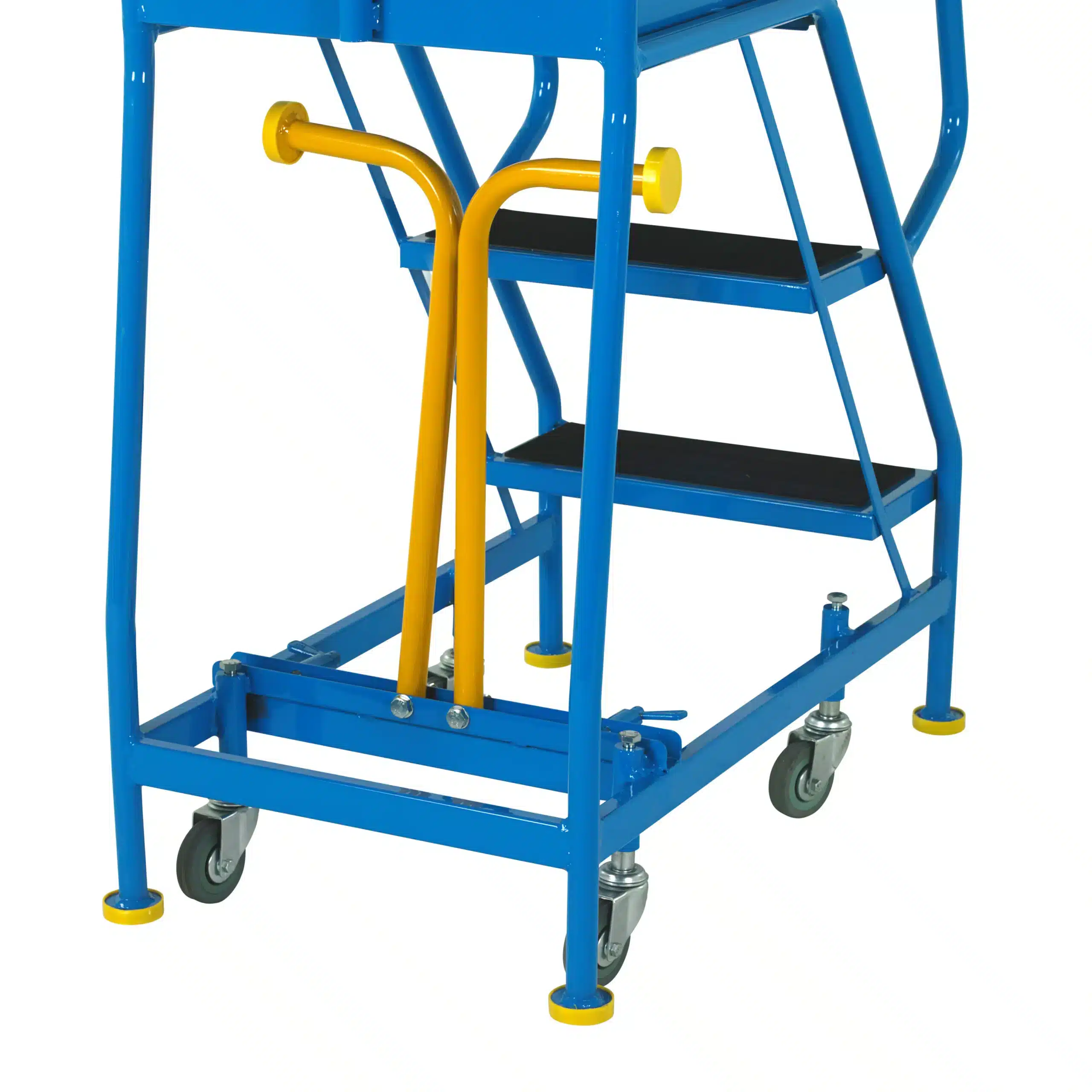

Safety is engineered into the very core of this product. Designed with an all-welded construction, these mobile steps boast a maximum load capacity of 150kg. Because industrial safety shouldn’t be left to chance, these platforms carry the prestigious BSI Kitemark (KM-608967) and are certified to rigorous BS EN 131-7 standards. To further guarantee stability at height, all larger models (from 3 treads upwards) are supplied complete with hinged stabilisers.

Intelligent Mobility

Manoeuvring through narrow aisles is effortless thanks to the intelligent base design. These units are fitted with premium spring-loaded castors. As soon as an operator applies weight to the steps, the castors seamlessly compress, allowing the sturdy feet to lower flush to the ground for a secure, immovable base. Once the operator steps off, the castors engage again, making the unit instantly mobile.

Customisable Treads and Finishes

Adapt these steps to your exact workplace requirements. The treads are formed from heavy-duty sheet steel and span a comfortable 400mm width. The top working platform offers a secure 406 x 406mm standing area.

Tread Options: Choose between a highly-textured anti-slip surface or a ribbed rubber finish.
Tread Clamps: The ribbed rubber models are supplied complete with robust tread clamps, ensuring high visibility on the step edge while preventing the material from peeling under heavy footfall.
Powder-Coated Colours: To match your corporate branding or warehouse safety zones, all colour finishes are hard-wearing and powder-coated. Options include Green, Red, Blue, Yellow, Grey, and White.

Technical Information

Treads (Inc. Platform)	Platform Height (mm)	Platform W x D (mm)	Overall H x W x D (mm)	Weight (kg)
2	500	406 x 406	1455 x 500 x 640	15
3	750	406 x 406	1705 x 500* x 820	20
4	1000	406 x 406	1950 x 500* x 1090	24
5	1250	406 x 406	2200 x 500* x 1240	28

* Width with stabilisers retracted.

Additional information

Certifications (Where Applicable)	BS EN 131-7
Country Of Manufacture	UK
Feet Type	Spring Loaded Swivel Castors
Material	Steel
Max Working Load (kg)	150
Paint Type	Powder Coat
Warranty	12 Months Manufacturer

Tread Types

Tread Surface	Usage Guidance
	Ribbed Rubber Treads Best For: General indoor usage. Provides excellent grip for everyday tasks. A cost-effective solution for ensuring safe and secure footing on mobile steps in dry environments.
	Ribbed Rubber (w/ Tread Clamps) Best For: High-traffic areas requiring extra durability. Offers excellent grip combined with high visibility and reduced tread lift-off. The clamps provide an extra layer of security for long-term heavy use.
	Anti-Slip Treads Best For: Maximum slip resistance. Significantly reduces the risk of slips, trips, and falls. A highly secure surface designed to provide maximum friction for the user.
	Punched Steel Treads Best For: Industrial, maintenance-free environments. Hard-wearing and durable performance with no risk of tread lift-off. These treads are designed for heavy-duty industrial environments where longevity is key.
	Aluminium Treads Best For: Lightweight durability and corrosion resistance. Tough and hard-wearing surface that reduces the risk of falls. Aluminium provides a premium, clean look with excellent structural integrity.
	Expamet Treads Best For: Dirty, oily, or outdoor environments. Features a mesh construction that allows debris, liquids, and dirt to fall through. Ideal for environments where the tread must remain clear to ensure safety.

Optional Extras

Accessory	Specifications & Fitting Details
	Hook On Basket Standalone Item Sturdy, British-made wire basket (220 x 600 x 220 mm). Perfect for tools and essentials with a 5kg load capacity. Easy hook-on design for immediate use.
	Hook On Tool Tray Standalone Item Spacious supply tray (250 x 600 x 220 mm) with a 5kg load capacity. Boosts productivity without the need for factory fitting.
	Security Gate Factory Fitted Only Robust gate with padlock fitting to prevent unauthorised use. Folds through 270 degrees. Includes Free UK Mainland Delivery when ordered with steps.
	Platform Gate (End) Factory Fitted Only Inward-opening, spring-loaded gate with plunge bolt. Increases platform depth to 760mm for enhanced safety.
	Platform Gate (Side) Factory Fitted Only Installed on either the left or right side. Features a spring-loaded plunge bolt and increases platform depth to 760mm.
	Double Hinged Bars Factory Fitted Only Available for End, Side, or Front. These bars raise to allow effortless movement or handling outside the platform while maintaining user security.
	Safety Platform Chains Factory Fitted Only Available for End, Side, or Front configurations. Features double chains secured by locking spring clips. Includes free UK delivery when ordered with steps.

FAQ's

Question	Technical Answer
What colours are your Redhill warehouse steps available in?	Standard Redhill steps come in the colours shown in our product options. We also offer custom powder-coating for bulk orders. Contact us for a RAL colour quote.
Are spare parts available?	Yes. We supply a full range of replacement treads, platforms, wheels, and rubber feet to extend the life of your steps. Visit our spare parts section or call our team for help. Spare parts available here.
Does the platform count as a tread?	Yes. When ordering, remember that the top platform is included in the tread count (e.g., a 4-tread step has 3 treads plus the platform).
Can these be used outdoors?	We strongly advise against using standard Steptek units outside. For wet or outdoor environments, you require galvanised warehouse steps to prevent rust and ensure safety. Contact us for a quote on galvanised models.
What safety standards do these meet?	Our BSI Redhill range is manufactured to meet EN131-7 standards for mobile leaning ladders and steps. They feature high handrails and kickboards to ensure full compliance with UK Health & Safety regulations.
What is the maximum weight capacity?	Most of our standard mobile warehouse steps have a Safe Working Load (SWL) of 150kg. This accommodates a single user plus tools or stock items. Always check the specific product data sheet for heavy-duty variants.
Do they arrive assembled?	All of our Redhill warehouse step units are delivered fully welded and ready for immediate use. Larger warehouse steps, usually 10 tread and above, will be supplied in 2 parts for on site assembly, this is for transportation reasons.
How does the braking or safety system work?	Our mobile steps use either a side hand lock lever and anti ascent bar or weight-activated retractable castors. Both systems ensure that once the user applies weight or engages the lock, the rubber feet grip the floor securely to prevent movement.
Are they safe for mezzanine floors?	Yes. Redhill steps are designed with non-marking rubber feet and high-quality castors, making them suitable for standard warehouse concrete, mezzanine flooring, and commercial surfaces without causing damage.
Can I get bulk order discounts?	We offer tiered pricing for volume orders (2+ units). Please check the bulk pricing on our product page, this is automatically applied in the cart and checkout section clearly.
Can I use a Purchase Order (PO)?	Yes, we accept POs from businesses, schools, and government bodies. Email your PO to sales@warehouseladders.co.uk* and we will process your invoice immediately.*
